Heat and Mass Transfer Project 3: 2D Steady-State Heat Transfer Analysis

Thermal Analysis of a 2D Domain

Project Overview

This project explores numerical solutions to steady-state heat conduction problems in two-dimensional rectangular domains using the finite difference method. Students will develop a computational tool that can analyze heat distribution across materials with different thermal properties under various boundary conditions. This project connects theoretical heat transfer principles with practical numerical methods used extensively in engineering applications.

Learning Objectives

Project Description

Background

The steady-state heat conduction in a 2D domain is governed by the following partial differential equation:

$$ \frac{\partial}{\partial x}\left(k_x \frac{\partial T}{\partial x}\right) + \frac{\partial}{\partial y}\left(k_y \frac{\partial T}{\partial y}\right) + \dot{q} = 0 $$

Where:

For homogeneous materials with constant thermal conductivity and no internal heat generation, this simplifies to:

$$ \frac{\partial^2 T}{\partial x^2} + \frac{\partial^2 T}{\partial y^2} = 0 $$

This is the Laplace equation for temperature.

For cases with internal heat generation, the governing equation becomes:

$$ \frac{\partial^2 T}{\partial x^2} + \frac{\partial^2 T}{\partial y^2} + \frac{\dot{q}}{k} = 0 $$

This is the Poisson equation, which must be addressed in this project.

Project Stages

1. Theoretical Foundation (25%)

2. Computational Implementation (40%)

Develop a program to implement the finite difference method for 2D steady-state heat conduction. Tasks include:

  1. Program Input Requirements:

    • Material properties (thermal conductivity, which may be directional)
    • Internal heat generation rates
    • Grid size (number of nodes in x and y directions)
    • Boundary condition specifications for each edge (type and values)
    • Solution method parameters (e.g., convergence criteria)

  2. Domain Discretization:

    • Create a mesh for the rectangular domain with specified dimensions $W \times H$
    • Handle boundary nodes appropriately for different boundary conditions
    • Implement heat generation terms in the domain

  3. Matrix Assembly:

    • Generate the coefficient matrix for the system of algebraic equations
    • Implement different boundary conditions into the matrix structure:
      • Constant temperature (Dirichlet)
      • Constant heat flux (Neumann)
      • Convection (Robin): $-k\frac{\partial T}{\partial n} = h(T - T_{\infty})$
    • Create the right-hand side vector for the system

  4. Solution Methods:

    • Implement direct solver methods (e.g., Gaussian elimination)
    • Implement iterative solver methods (e.g., Gauss-Seidel)
    • Compare performance

  5. Program Output Requirements:

    • Nodal temperatures throughout the domain
    • Heat fluxes at all nodes (magnitude and direction)
    • Overall heat transfer rates at boundaries

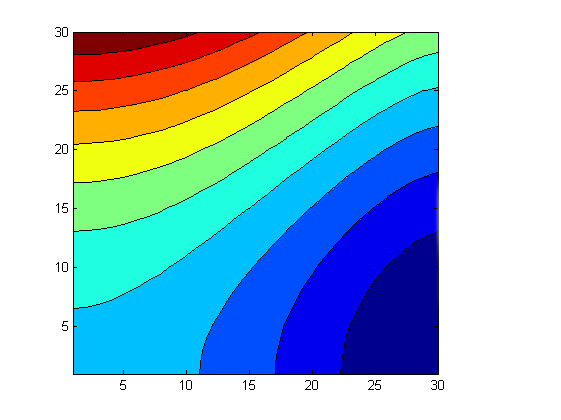

    • Visualization of temperature distribution and heat flow

3. Validation and Verification (20%)

4. Case Studies and Analysis (15%)

Technical Requirements

Deliverables

  1. Comprehensive report including:

    • Theoretical background on finite difference methods
    • Detailed mathematical formulation
    • Description of numerical implementation
    • Validation results and analysis
    • Case studies and their engineering interpretations
    • Limitations and potential improvements

  2. Well-documented source code:

    • Core program for solving 2D heat conduction
    • Supporting functions for mesh generation, visualization, etc.
    • User manual explaining how to use the program

  3. Presentation:

    • Clear explanation of the numerical approach
    • Demonstration of program capabilities
    • Presentation of key results and insights
    • Discussion of challenges and solutions

Evaluation Criteria

Bonus Challenges (Optional)

For students interested in extending their understanding and skills beyond the core requirements:

  1. Variable Grid Size Implementation

    • Develop capabilities for non-uniform grid spacing in both x and y directions
    • Implement local mesh refinement in regions of interest
    • Compare solution accuracy between uniform and non-uniform grids
    • Analyze computational efficiency gains from strategic grid refinement

  2. Radiation Boundary Condition

    • Implement radiation boundary conditions: $-k\frac{\partial T}{\partial n} = \epsilon\sigma(T^4 - T_{\infty}^4)$
    • Handle the non-linearity introduced by the fourth-power temperature dependence
    • Develop a linearization technique or iterative approach for solution
    • Compare combined radiation and convection effects on boundaries

  3. Spatially Variable Material Properties

    • Implement capabilities for handling different materials within the domain
    • Allow specification of thermal conductivity as a function of position
    • Handle interfaces between different materials appropriately
    • Analyze the impact of material property variations on temperature distribution

  4. User Interface Development

    • Create a graphical user interface (GUI) for easier problem setup
    • Implement interactive visualization of results
    • Develop tools for parametric studies and sensitivity analysis
    • Design a user-friendly method for specifying complex boundary conditions
  1. Fundamentals of Heat and Mass Transfer, [8th ed.] by Theodore L. Bergman, Adrienne S. Lavine
  2. Heat and Mass Transfer, Fundamentals & Applications, [6th ed.] by Yunus A. Cengel, Afshin J. Ghajar
  3. Heat Conduction, [5th ed.] by Kakac, S., Yener, Y., & Naveira-Cotta, C.P.
  4. Heat Conduction, [3rd ed.] by David W. Hahn, M. Necati Özisik
  5. Finite Difference Methods in Heat Transfer, [2nd ed.] by Özişik, M.N., Orlande, H.R.B., Colaço, M.J., & Cotta, R.M.

Submission Guidelines
